Главная / OPzV Tubular Gel Battery

OPzV2-1000 2V 1000Ah Tubular Gel Battery

OPzV2-1000 2V 1000Ah tubular gel battery for solar, telecom and Системы ИБП.

233 × 210 × 646 mm73.2 kgПолучить предложение
Technical Specifications

OPzV2-1000 Detailed Parameters

МодельOPzV2-1000
ТехнологияTubular Gel Battery
Номинальное напряжение2V
Номинальная ёмкость1000Ah
Размеры233 × 210 × 646 mm
Length233 mm
Width210 mm
Height646 mm
Общая высота681 mm
Вес73.2 kg
ТерминалM8 internal screw
Design Life20+ years float service
Напряжение подзаряда2.23V/cell @25°C
Цикловое напряжение2.40-2.45V/cell @25°C
Max Charge Current0.20C10A
Применения

Рекомендуемые применения

  • Solar energy storage
  • Резервное питание телеком
  • UPS
  • Industrial backup
Размеры, total height, weight and terminal data are critical for replacement matching, cabinet design and freight calculation.
Product Features

Key Features & Advantages

Not only basic specifications: this section explains why buyers choose this product.

Tubular gel technologyБез обслуживания gel system for long-life stationary applications.
Deep cycle performanceDesigned for solar storage, telecom backup and off-grid cyclic operation.
Long service lifeTubular positive plate structure supports long float and cyclic life.
Low self-dischargeSuitable for standby systems and long storage periods.
High reliabilityStable performance in harsh environments.
Project-readySuitable for telecom, utility, data center and renewable energy projects.
Engineering Data

Technical Performance Reference

Reference charts help buyers evaluate charging behavior, temperature influence and cycle expectations.

Характеристики зарядки

Reference Curve

Final voltage settings should follow datasheet and project conditions.

Temperature Performance

Reference Curve

Ёмкость and charging voltage are affected by ambient temperature.

Cycle Life Reference

Reference Curve

Cycle life depends on depth of discharge, temperature and charging method.

Why are dimensions and weight important?

They help confirm cabinet compatibility, rack layout, freight cost and replacement fit.

How can I get the official datasheet?

Контакт sales@chisen.cn or WhatsApp +86 131 6622 6999.

Product Images

OPzV2-1000 2V 1000Ah Tubular Gel Battery Gallery

Multiple product views are shown when exact model images are available in the CHISEN local asset library.

OPzV2-1000 2V 1000Ah Tubular Gel Battery Main product image
Main product image
OPzV2-1000 2V 1000Ah Tubular Gel Battery Product detail image 2
Product detail image 2
OPzV2-1000 2V 1000Ah Tubular Gel Battery Product detail image 3
Product detail image 3
OPzV2-1000 2V 1000Ah Tubular Gel Battery Product detail image 4
Product detail image 4

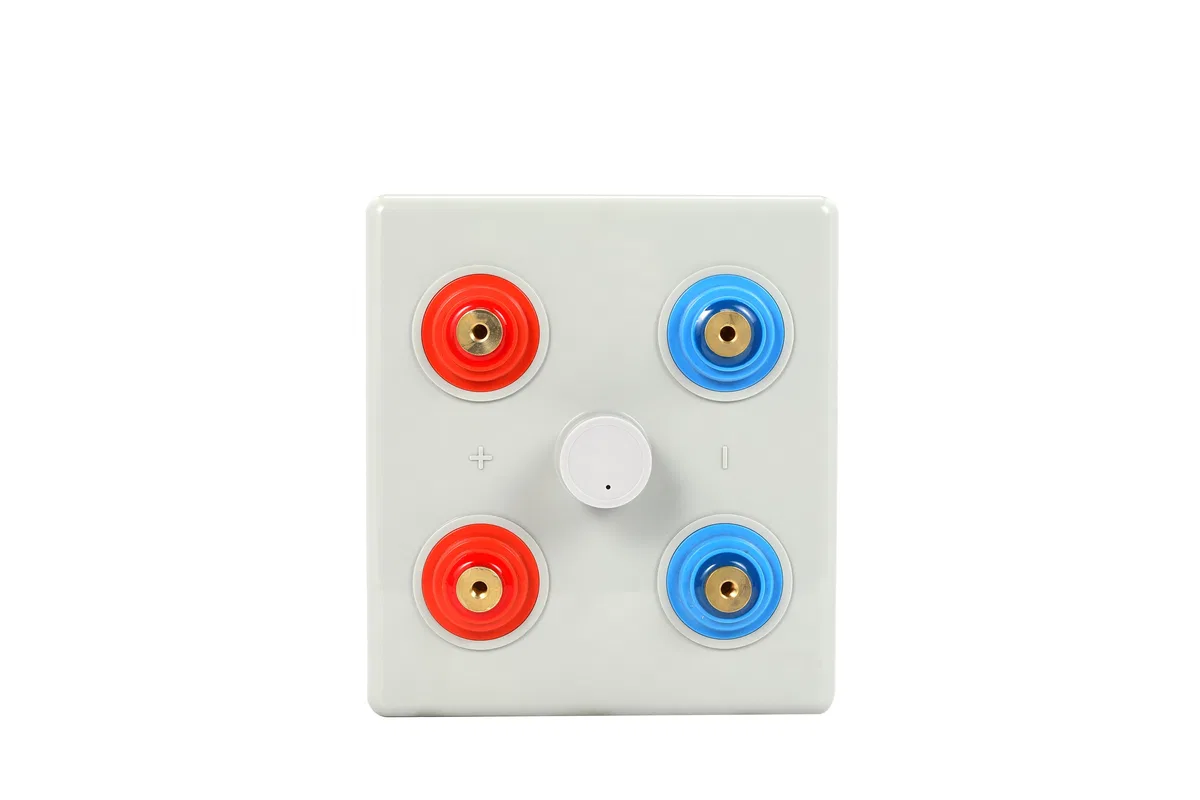

OPzV2-1000 2V 1000Ah Tubular Gel Battery Product detail image 5
Product detail image 5
WhatsApp
Инженерный интеллект V26

OPzV Tubular Gel Engineering Data

OPzV2-1000 2V 1000Ah Tubular Gel Battery is structured as an engineering-grade product page for international B2B buyers, combining technical specifications, application logic, performance curves, Часто задаваемые вопросы and datasheet access.

Инженерное позиционирование

OPZV2-1000 belongs to the CHISEN Tubular plate gel battery platform. This page is designed for selection, comparison and inquiry by distributors, OEM buyers, system integrators and project engineers.

ТехнологияTubular gel
Напряжение2V cells
Design FocusLong life / deep cycle
ПрименениеIndustrial energy storage
ОбслуживаниеSealed gel
Project LevelTelecom / utility

Рекомендуемые применения

Применение mapping helps buyers select the correct battery platform by industry and working condition rather than by model number only.

Telecom base stationsUtility energy storageSolar ESSIndustrial DC systemsLong-duration backupRemote power sites
Запрос инженерной спецификацииПосетите центр загрузки

Инженерные кривые производительности

The following curve area standardizes how charging, discharging and storage behavior are explained across CHISEN product pages. Final curve values should be confirmed by the model-specific datasheet when available.

Характеристики зарядки

Shows typical charging voltage, charging current and capacity recovery behavior.

Характеристики разрядки

Helps engineers estimate voltage behavior under different discharge rates.

Саморазряд / Температура

Supports storage planning and high-temperature market evaluation.

Инженерные часто задаваемые вопросы

What is OPzV battery?

OPzV is a sealed tubular gel battery designed for long-life industrial energy storage and backup power applications.

OPzV vs OPzS: what is the difference?

OPzV is sealed gel and lower maintenance; OPzS is flooded tubular and requires electrolyte maintenance but is widely used in stationary power.

Where is OPzV recommended?

OPzV is recommended for telecom, solar ESS, remote sites and long-duration industrial backup systems.
